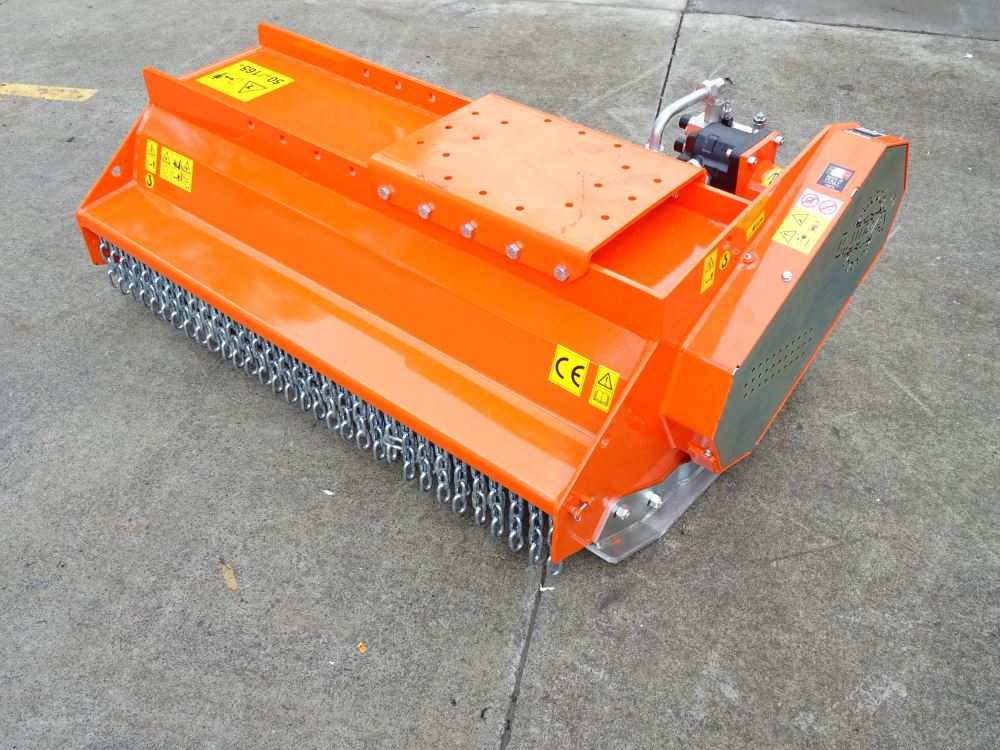

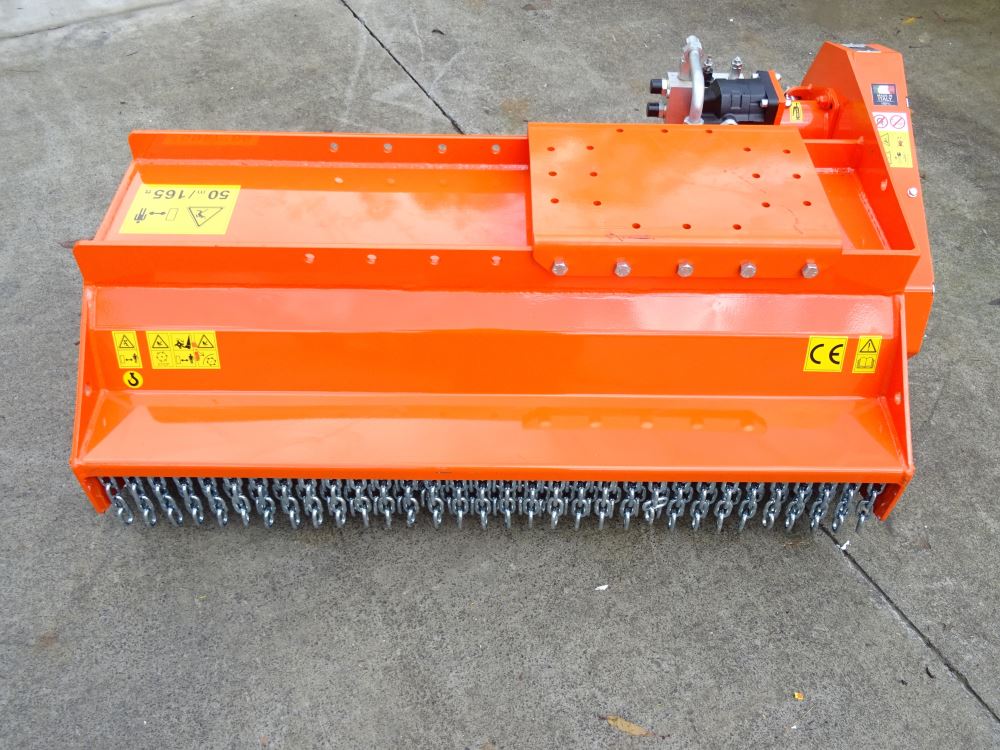

TLBES-120 Mulching Mower for Excavator 75 LPM (with Hammer Flails)
The TLBE-120 with group 3 30/43 motor, Max 75 LPM, is an Excavator mounted shredding head, perfect for cutting/mulching grass, undergrowth, shrubs, and saplings in those hard to reach locations ( generally up 70-100 diameter)
It can be matched to Excavators from 8-13 ton
FEATURES AND BENEFITS
-It has solid, well designed construction with 10mm wall thickness, and 8mm thick side plates.
-It is suitable for oil flow up to 75LPM.
-Optional flow regulators are available to provide constant flow on higher flow machines
-Adjustable rear roller with scraper

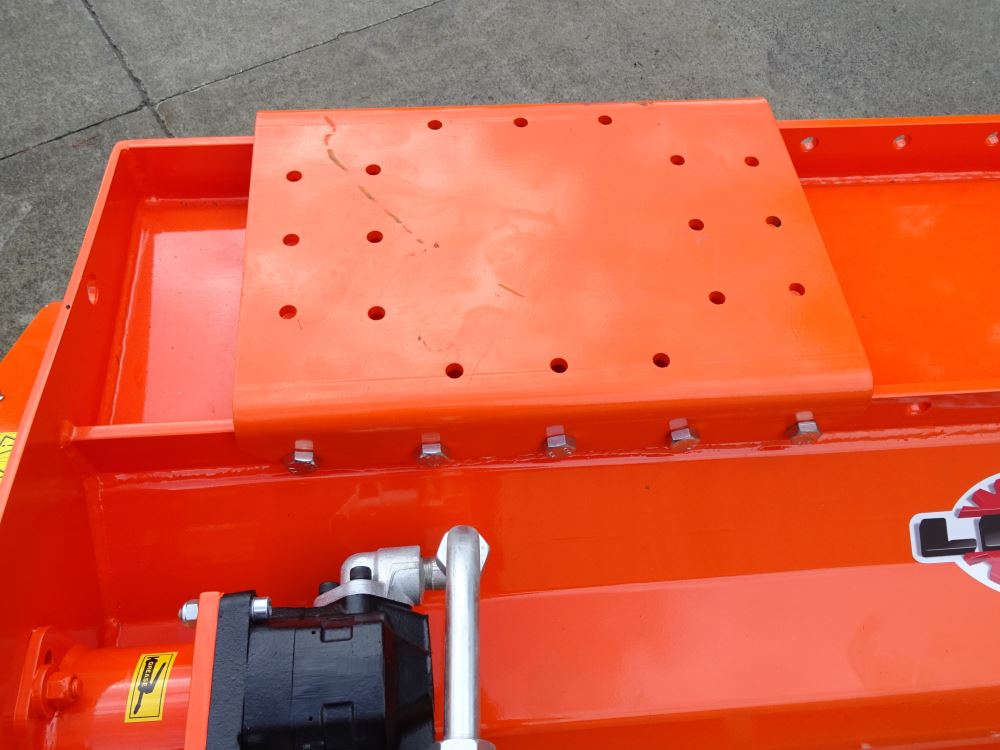

- Adjustable position headstock

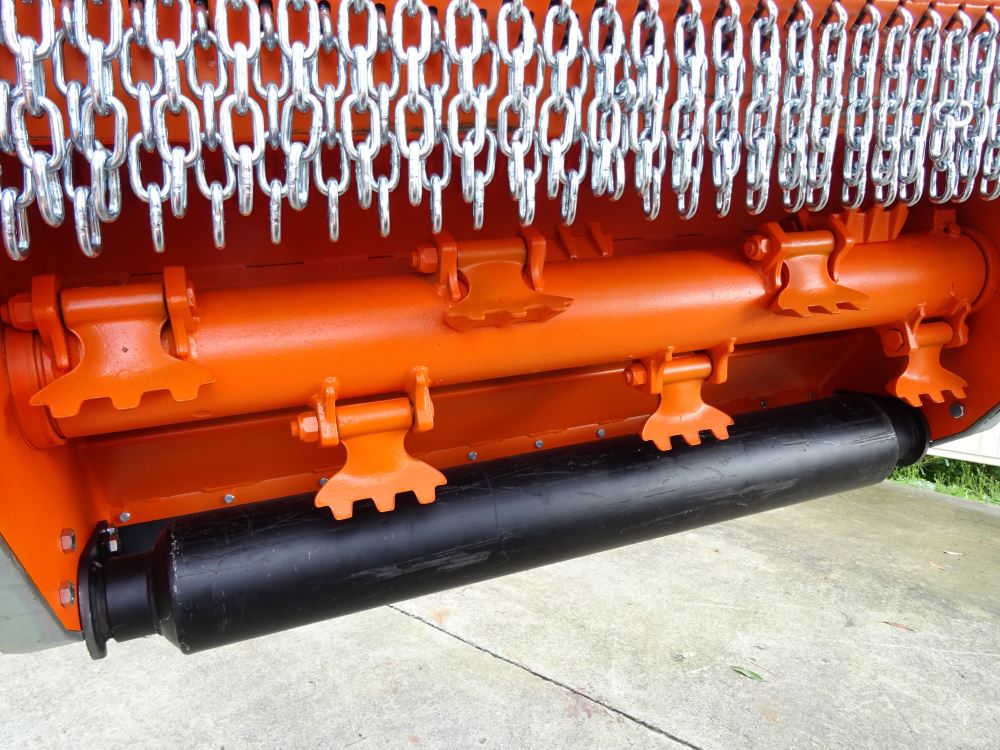

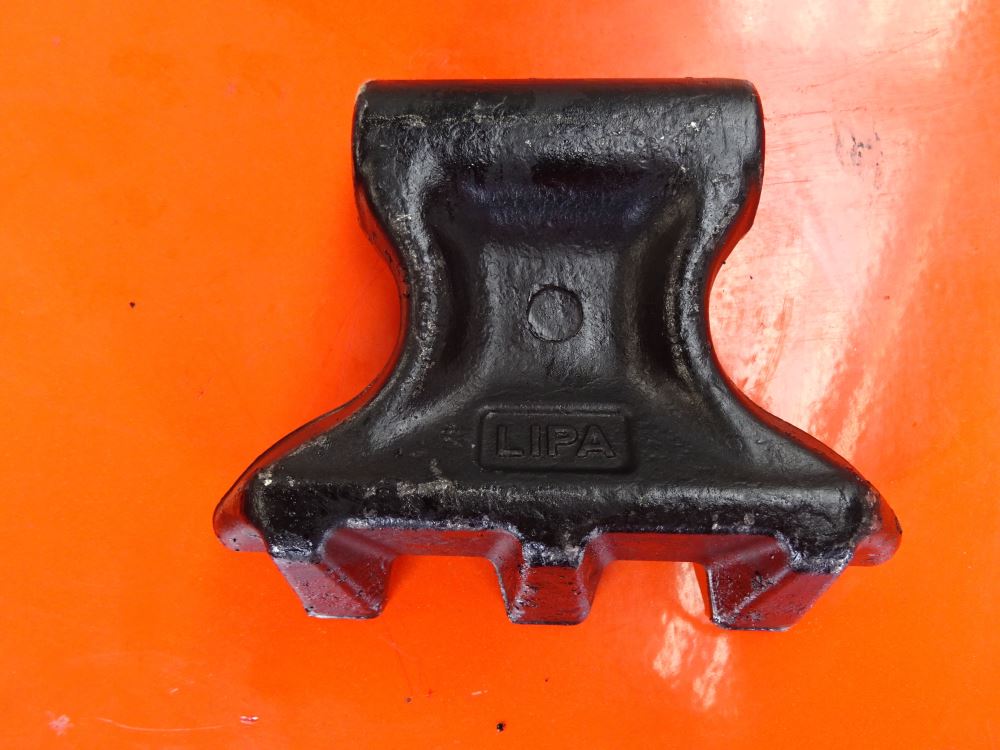

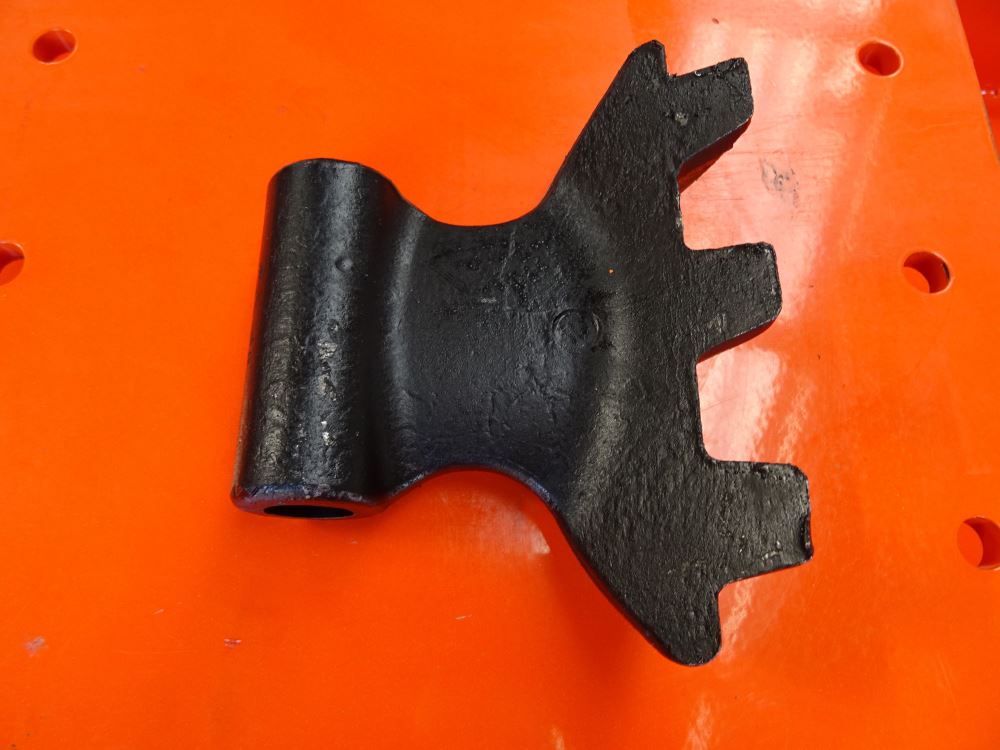

-7 toothed Hammers

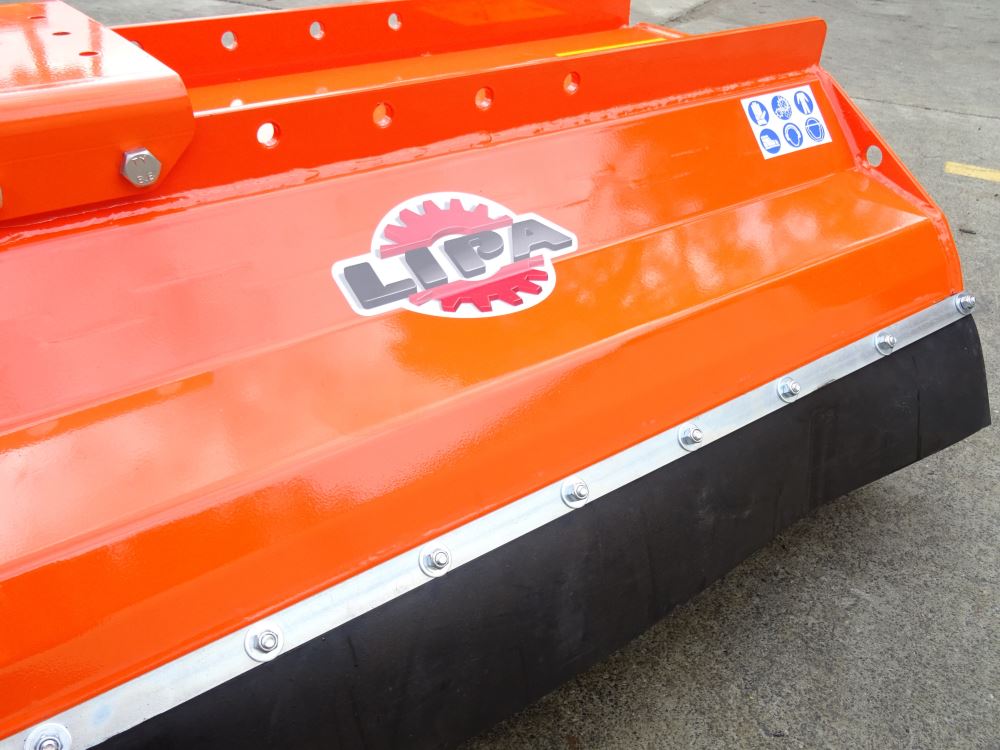

- Features zinc plated front chain guard, and rear rubber guards
-Powder coated finish
-Does not come with hoses or hitch but we can supply to your requirements. price excludes excavator attachment brackets and pins.
|Number of hammers||7|
|Oil Flow Requirement||67+ LPM|
|Rotor diameter and thickness||140mm x 8|
|Maximum hydraulic pressure||4060 PSI (280 Bar)|
|Number of Belts||3|
|Cowl and side plate thickness||8mm|
|Motor||Series 3 Casappa hydraulic|
