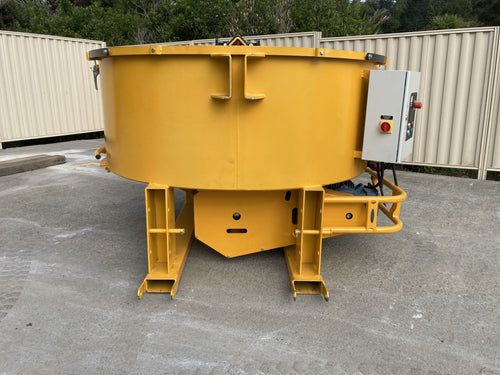

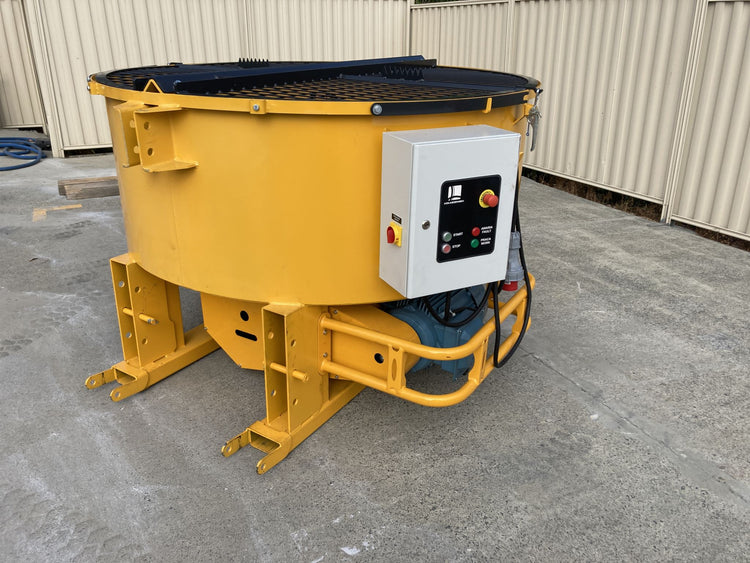

Electric Pan Concrete Mixer with Mix capacity 1.2 M3 (1200L) Low set

OVERVIEW

This is the largest model Electric Pan concrete mixer in its range with 1.2m3 mixing capacity. Zagroda Concrete mixers are a quality machine, with world class materials and manufacturing standards.This Electric 1.2m3  Pan mixer, is practical, easy to use, and gets the job done with minimal clean up Ideal for production of concrete products in a factory situation running on 3 phase power means clean running indoors.

 FEATURES AND BENEFITS

-3 Phase Electric Motor drive. 18.5 KW @ 1400 RPM via belt and gearbox drive

- 32 RPM Mixing speed

- 5 replaceable mixing blades and 1 scraper blade, all adjustable

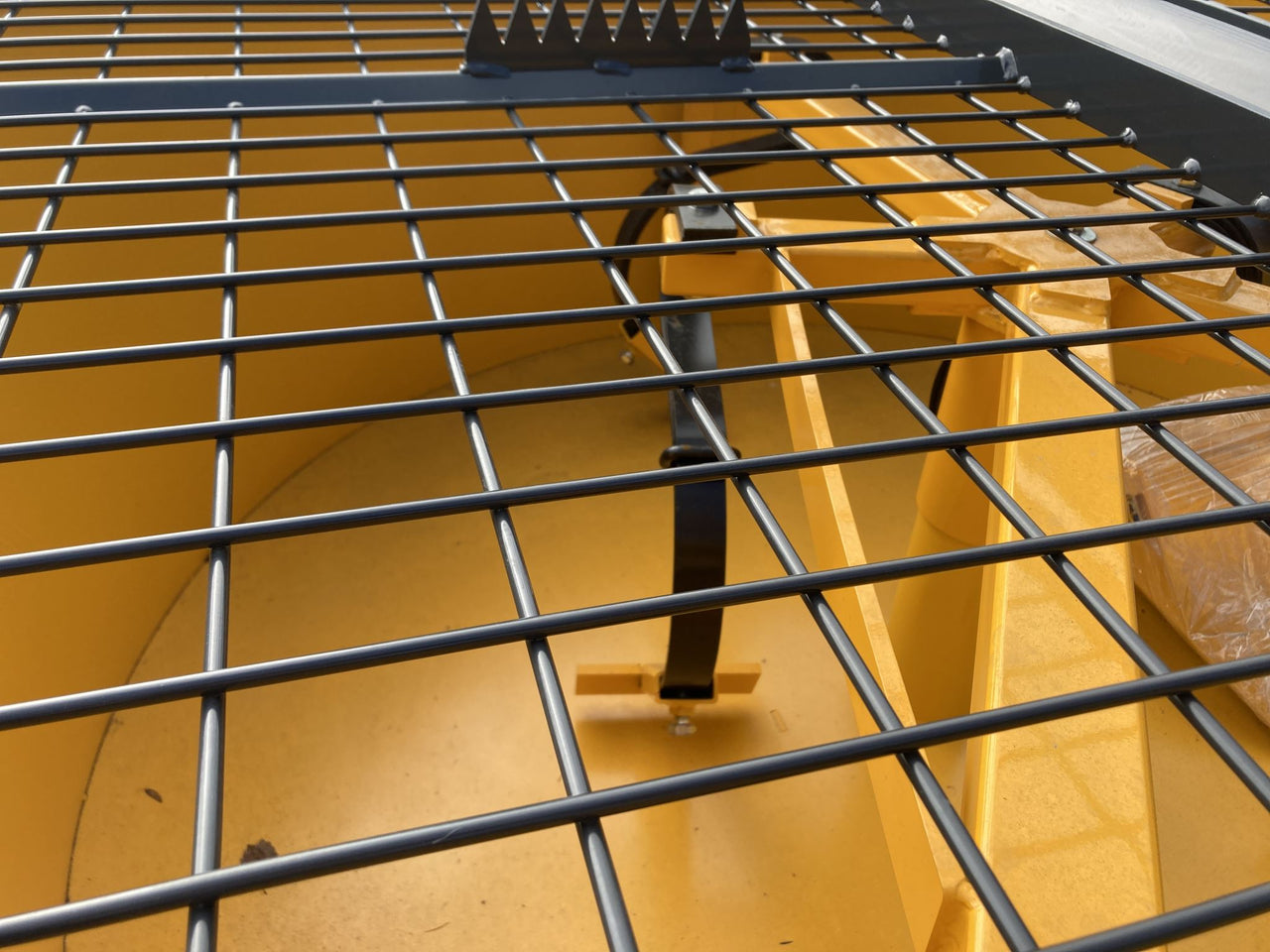

- Protective grate (sieve) with integrated cement bag breaker (cutter), which folds up for easy cleaning of the machine after use

- Side and rear outlets

- 3-blade mixing springs ensure a through mix consistency and side scraper to reduce buildup on the sides

- Pallet fork pockets for easy transportation.



Specifications	Units.
TARE weight	950Kg
Loaded weight	3830kg
Mixing pan diameter	1900mm
Mixing agitator and blades	4pc and 1 scraper bade (all adjustable vertically and lateraly) .Made of high strength wear resistant steel
Blade Thickness	16mm
Length	2137mm
Width	2222mm
Height	1230mm
Thickness of sides	5mm
Thickness of floor	8mm
Connection	Fork pockets  or 3 Point CAT 2
Speed	32 RPM
Power	ABB 3 Phase electric motor drive. 18.5kw via belt and  reduction gearbox drive
Materials	High quality reinforced and wear resistant Hardox steel .



Made in the EU by Zagroda
