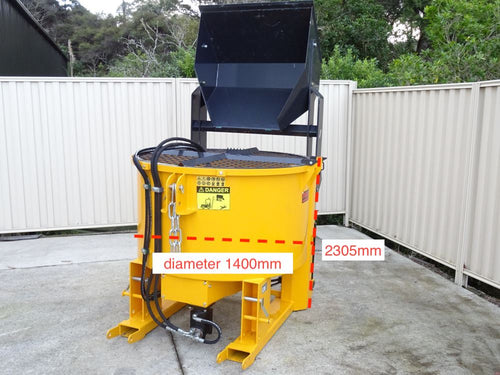

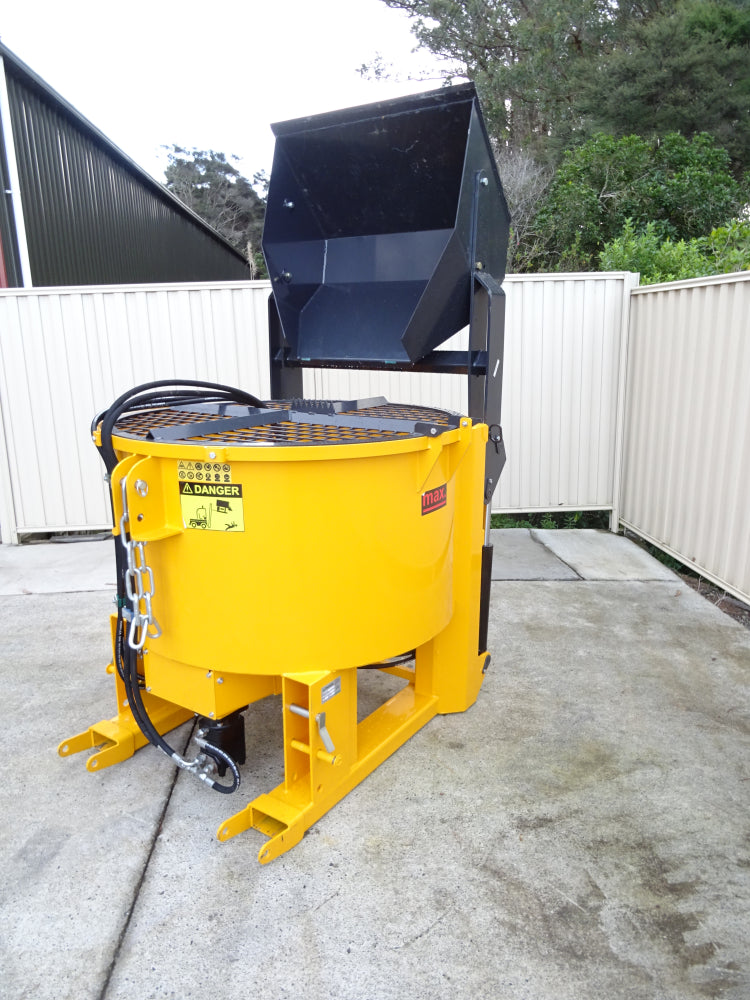

Self Loading Hydraulic Concrete Mixer with Mix capacity 600L (0.6M3 )

Overview



This Hydraulic 600L Pan mixer from Zagroda is a superior machine constructed with top-of-the-line materials and industry-leading manufacturing standards that appeals to farmers, builders, and concrete experts. The mixer features a self-loading function, eliminating the need for a separate machine to load the mix into the pan. This makes it ideal for job sites where only one tractor is available. With its practicality, ease of use, and efficient results, clean up is kept to a minimum.



 Features & Benefits

• 3 point linkage cat  II mount  it also has  Fork  pockets so can be fork mounted also.
• -4 mixing blades and 1 scraper blade ,all adjustable
• Strong mesh lid with integrated cement bag breaker, which folds up for easy cleaning of the machine after use
• Requires 2 Hydraulic services, (one double acting) one for the loader bucket, and one for the mixer action
• Outlet chute easily slides out for cleaning
• 3-blade mixing springs ensure a through mix consistency and side scraper to reduce buildup on the sides
• Splash guard to protect your tractor from cement splashes
• Protective grate (sieve)


Specifications	Units.
TARE weight	730Kg
Loaded weight	2200kg
Mixing pan diameter	1400mm
Mixing agitator and  blades	4pc and 1 scraper bade (all adjustable vertically and laterally) .Made of high strength wear resistant steel
Blade Thickness	16mm
Power	Requires 2 hydraulic services (double acting), one for the loader bucket and one for the mixer action
Length	1445mm
Width	1460mm
Height	2305mm
Thickness of sides	5mm
Thickness of floor	8mm
Tractor	65HP +
Linkage	3 point linkage, CAT  2
LPM	recommended flow rate 60-80 l/min (max 120 l/min)
Services required	2 pair of hydrualic remotes. (1 double acting)
Materials	High quality reinfoiced and wear resistant Hardox steel .



Made in the EU by Zagroda
