Concrete mixer Hydraulic - 1.2 M3

Zagroda

$15,995.00 NZD inc GST

$13,908.71 NZD exc GST

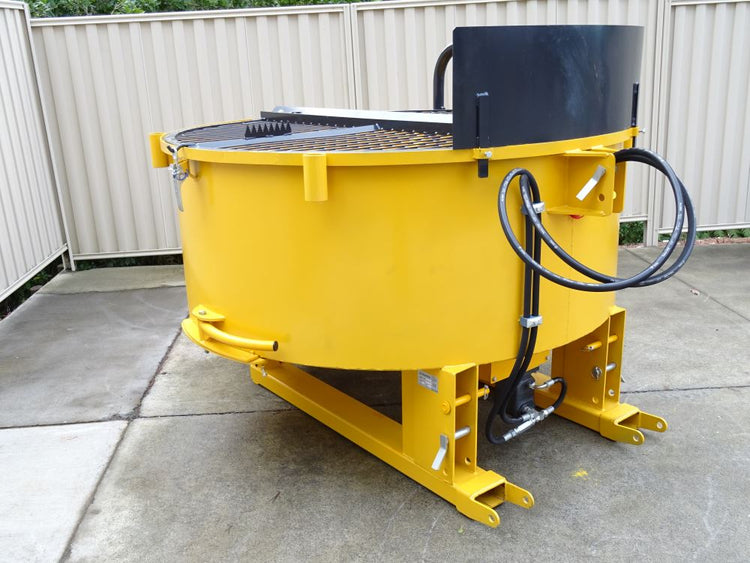

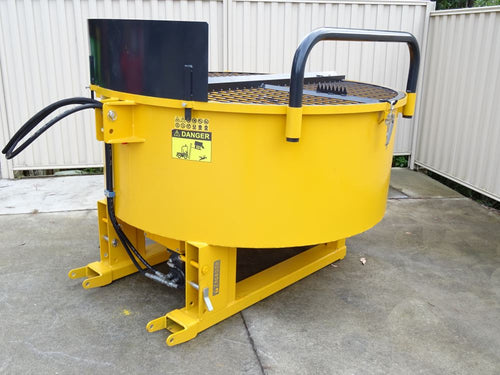

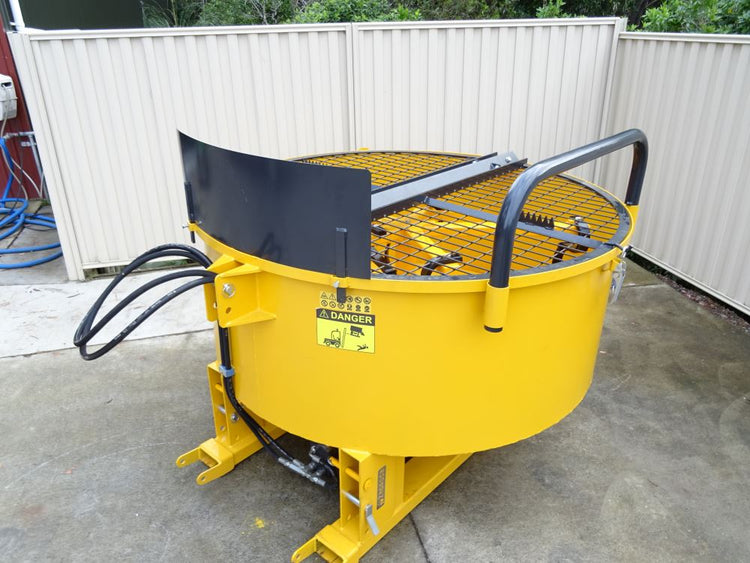

Hydraulic Concrete Mixer with Mix capacity 1.2 M3

Overview

This is the largest model Hydraulic concrete mixer in its range with a 1.2m3 mixing capacity. Zagroda Concrete mixers are commercial duty machines, with world-class materials and manufacturing standards, which makes them popular with farmers, builders and concrete specialists alike. These are durable machines, with low running costs. This Hydraulic 1.2m3  Pan mixer is practical, easy to use, and gets the job done with minimal cleanup.

Features & Benefits

  • It can be mounted on fork tines (with built-in fork slots with locking pins) or 3-point linkage cat II
  • 5 replaceable mixing blades and 1 scraper blade, all adjustable
  • Protective grate (sieve) with integrated cement bag breaker (cutter), which folds up for easy cleaning of the machine after use
  • Side and rear outlets
  • 3-blade mixing springs ensure a thorough mix consistency and side scraper reduces buildup on the sides
  • Splash guard  to protect your tractor from cement splashes
  • Hydraulic motor with Heavy duty chain drive with 16B chain (1 inch)
  • Spring tensioner on the drive chain
  • Remote greasing point for chain and bearing lube
  • High-quality main bearing for the drive



Specifications

Specifications Units.

TARE weight

 650Kg

Loaded weight

 3500kg

Mixing pan diameter

 1900mm
Mixing agitator and blades 4pc and 1 scraper blade (all adjustable vertically and laterally ) Made of high strength wear resistant steel
Blade Thickness 16mm
Length  1900mm
Width  1900mm
Height  1230mm
The thickness of the sides 5mm
The thickness of the floor 8mm
Tractor 100HP+( needs to be able to carry 3500 KG to move the mixer loaded)
Linkage 3-point linkage, CAT 2
Hydraulic Flow  Recommended flow rate 60-80 l/min (max 120 l/min)
Transmission gear ratio 1:6
Materials

 High-quality reinforced and wear-resistant Hardox steel.



Made in the EU by Zagroda
