New Towable version of the popular hydraulic driven 850L Pan concrete mixer

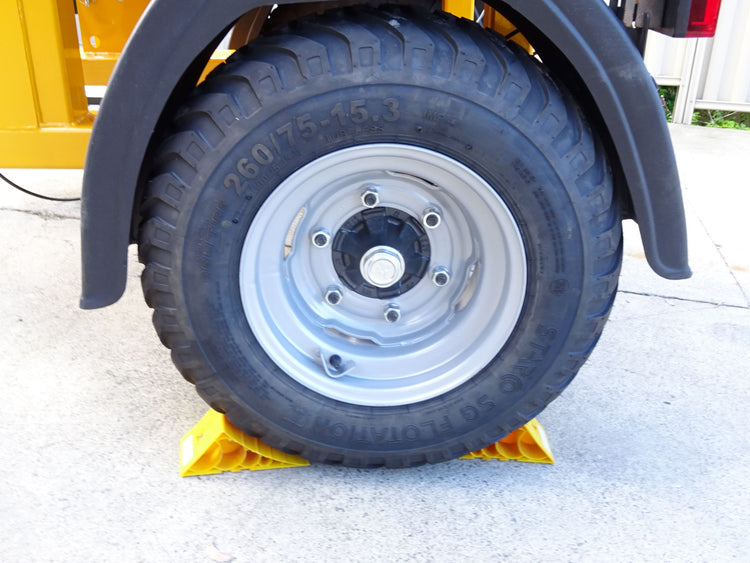

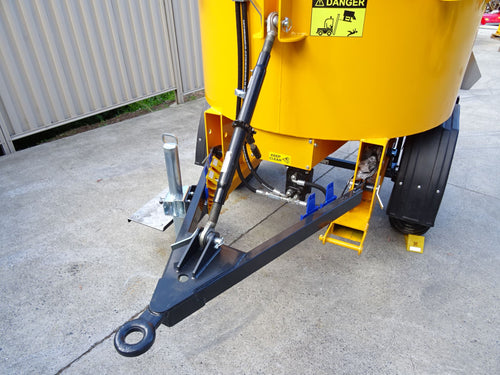

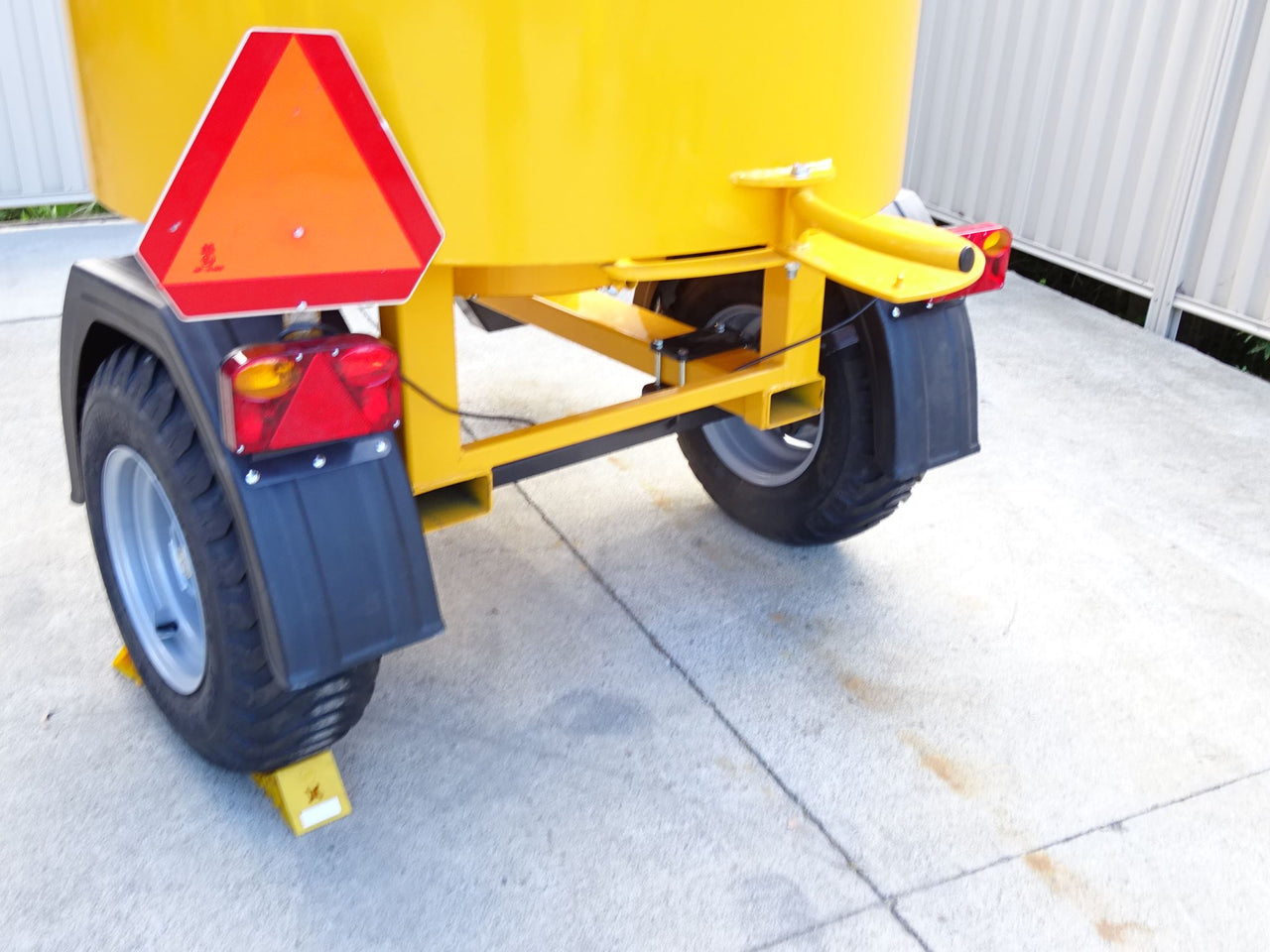

Mounted with axle , mudguard and drawbar, all of which can be easily removed to covert back to 3 point linkage of fork mounting.
The towable configuration is ideal for use with smaller tractors which cannot bear the 2500KG loaded weight of the mixer on the 3 point linkage.


These pan mixers have been designed for use by builders, farmers and concrete specialists

0.85 m3 (850l ) capacity

4 mixing blades and 1 scraper blade , all adjustable

Protective grate (sieve) mesh lid which folds up for easy cleaning of the machine after use

Anti splash guard to protect your tractor / tele-handler

This is a very well made heavy duty machine with 5mm sides and 8mm floor

Diameter 1600mm

Height 1230mm

Weight 650 kg (Appx 2500KG loaded)

Comes with Hydraulic pipes and fittings

Hydraulic drive. Recommended oil flow for mixer – 70-90 l/min.,
