LIPA Flail Mower Excavator Mulcher TLBE-70

Overview

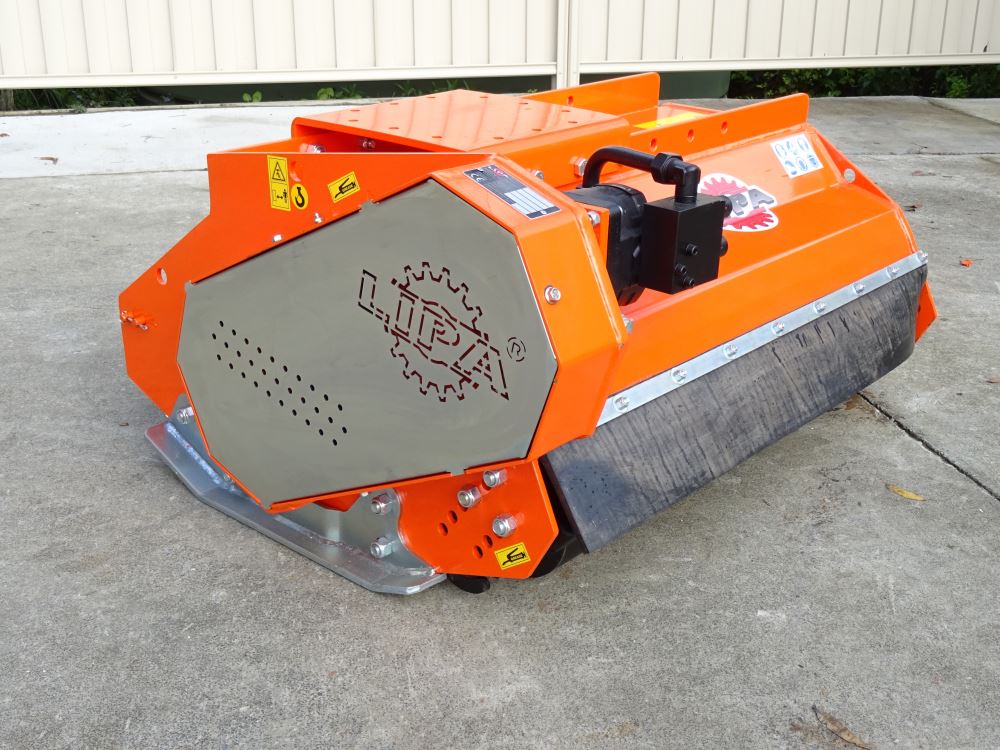

The TLBE-70  Flail Mulcher head is made by LIPA SRL in  Italy. The TLBE-70 model is ideal size  mini excavators 2-4 ton . This attachments can mulch grass, small trees and bushes or trim  branches in those hard to reach locations ( generally up to 40mm in diameter). It can be fitted to Excavators from 2-4 tonnes with oil flow of 35 -45 LPM

Features & Benefits

• It has solid construction with a 6mm thick cowl, and 8mm thick side plates.

• Strong Forged smooth Hammer flails

• Fitted with a Casappa KM20-20It is suitable for oil flow up to 354 5LPM, and 210 bar

•  Adjustable roller and skids
• It not include hoses or hitch but we can supply to your requirements if required, please enquire.




Specifications	Units
Overall Width	850mm
Cutting Width	740mm
Depth	816mm
Overall Height	702mm
Weight	200 kg
Excavator Size	2.5-4 ton
Number of hammers	7
Cutting Capacity	40mm
Rotor Speed	2000 RPM
Oil Flow Requirement	35-45 LPM
Rotor diameter and thickness	108 x 8
Maximum hydraulic pressure	3045 PSI (210 Bar)
Number of Belts	2
Protection	Chain & Rubber curtain
Side plate thickness	8mm
Mower deck thickness	6mm
