Iris Multi Spreader 780L  Hydrualic Drive

OVERVIEW

Iris Multi-Spreader IOD-600-A 780L Hydrualic drive  , is the perfect  solution for spreading lime and  granular fertilisers, as well as organic composts and manures. .The patented double shutter system handles all types of manure, organic compost  (3-6 metre spread) to granular fertilisers and lime (8-16 metre spread).

Only 1 pair of hydrualic remotes required to run this spreader.

FEATURES AND BENEFITS:

-Single Spinner & Shutter System:

-Spinner is hydrualic driven

-Spinner speed controls the spreading width

-Shutter One works for manure

-Shutter Two has butterfly openings to control granular type fertilizers and lime

-These are mechanically controlled by levers

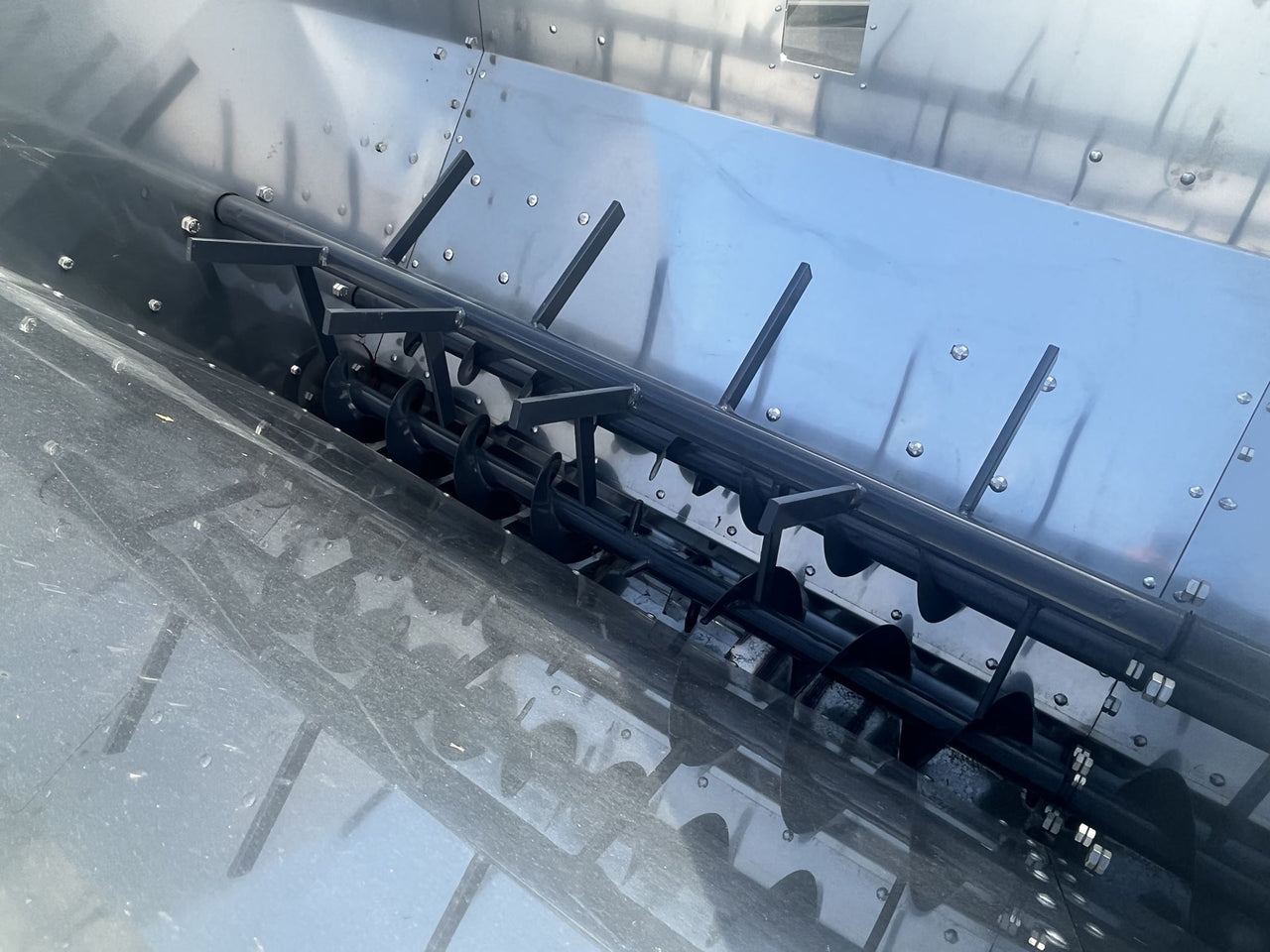

-Auger & Agitator:

-Auger drive pulls material into the hopper outlet.

-The agitator stops bridging of material.

-Both the Auger and Agitator are driven by hydraulic motor

-The distribution of materials is a disc type spread of 3-10 m width, larger materials, and 8-16m smaller, granulated materials

-A single Stainless Steel disc provides full width 180º spreading.

-Side discharge option available for shooting the material under orchard rows etc Also PVC Hopper Cover option available.



Specifications	Units
Width	1500mm
Length	1320mm
Height	1330mm
Capacity	780 Litres (0.78m3)
Weight	240kg
Spreading diameter (manure and compost)	3-6 m
Spreading diameter (granular fertilisers and lime)	8-16m
Attachment	3 Point Linkage
Spinner and shutter system	Hydrualic Driven
Auger and aggitator	Hydraulic Driven
Hopper material	Stainless steel 430
