Sierra Grader Blade 1.8m (6ft) with Angle tilt and Offset
OVERVIEW
The famously strong Sierra Grader Blade is the perfect implement for driveway grading, light landscaping, drain forming , contouring work and many other applications!
One of the stand-out features is the removable end plates which make moving and spreading material easier. as they prevent it from escaping out the end of the blade.
BENEFITS AND FEATURES
- Designed for Category 1 tractors only, up to 45HP

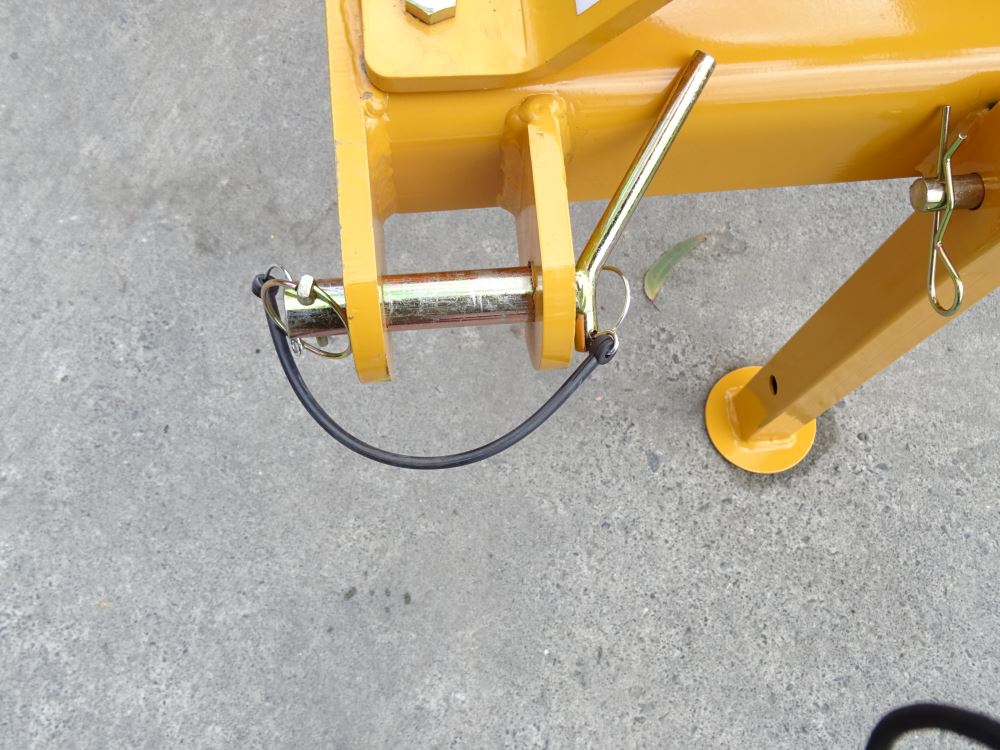

- Includes Category 1 pins with clevis style hitch for easy connection and removal of the implement by just pulling the pins.
- 4 Angle settings forward and reverse (blade can be turned 180 degrees so it faces backwards for pushing).
- 4 Tilt settings : 2 left: 2 right.
- 6 Offset settings: 3 left: 3 right.

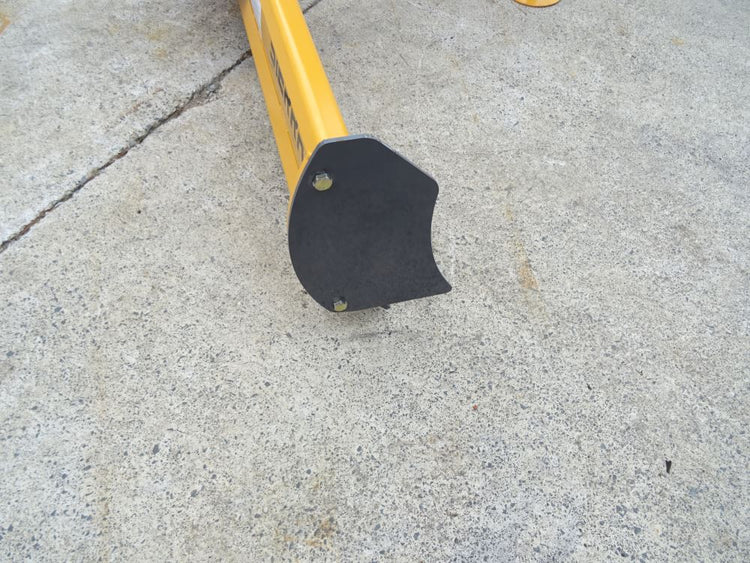

- Removable end plates, making the spreading of material easier.
- Replaceable bolt-on cutting edge.
- Greasable main pivot points with 50mm diameter kingpins.
- Parking stand for easy hookup.
| Specifications |
Units |
| Cutting Width | 1820mm |
| Depth | 1550 mm |
|
Height |
935mm |
| Weight | 155kg |
|
Hitch points |
Clevis style |
| Linkage | Category 1 |
| Offset Settings | 3 left: 3 right |
| Tilt settings | 2 left: 2 right |
| Tractor power range | 28-45 HP |
|
Moldboard Steel thickness |
5 mm |
Designed and proven in NZ
12-month warranty
