Overview

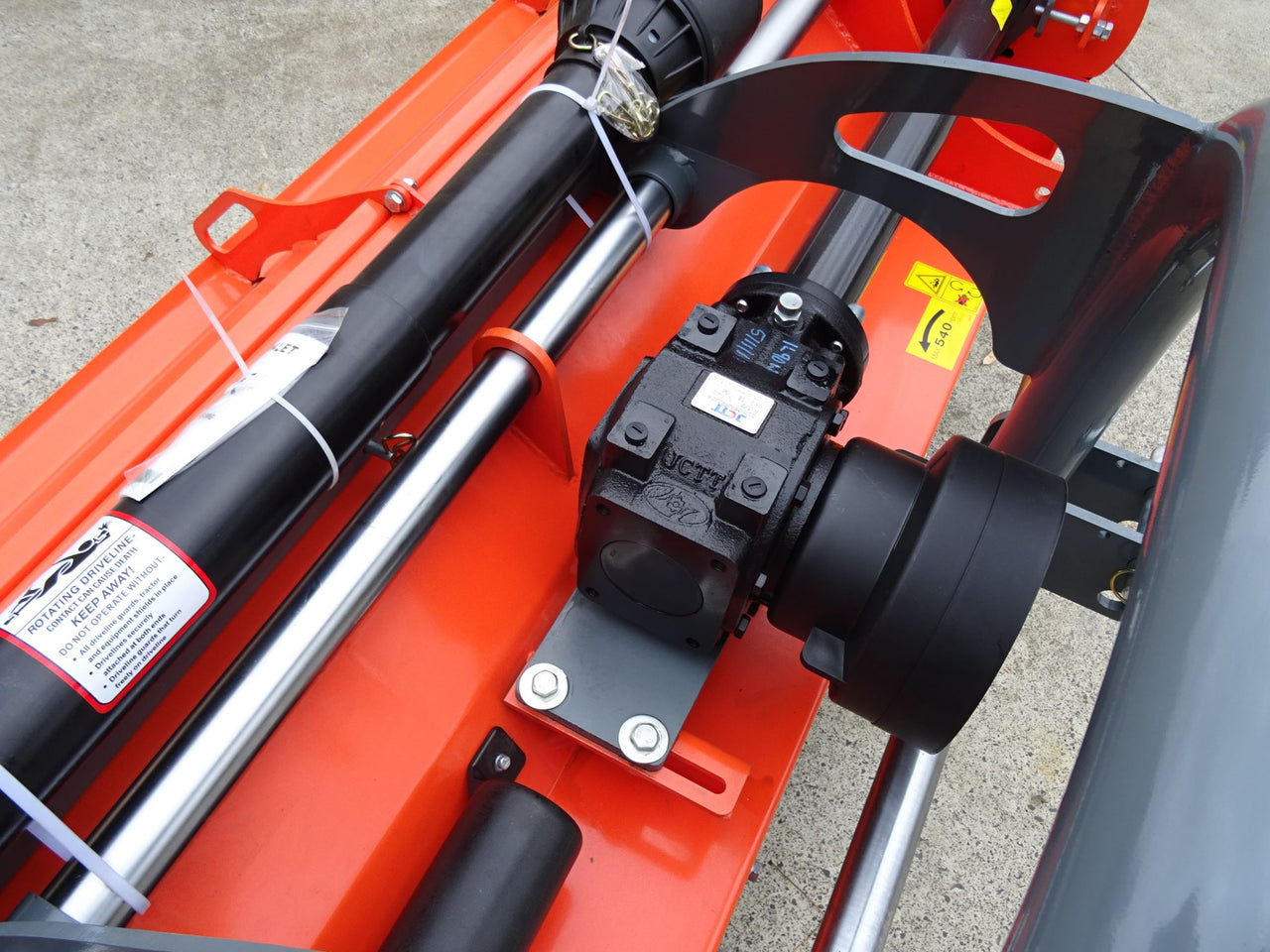

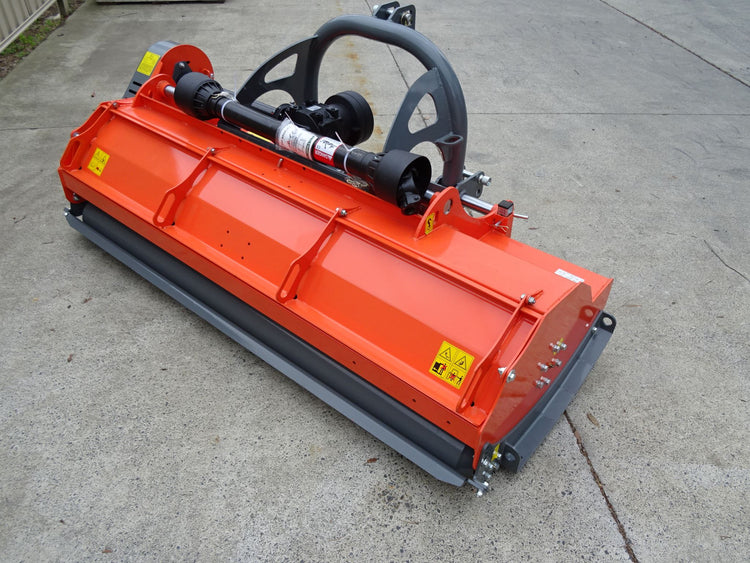

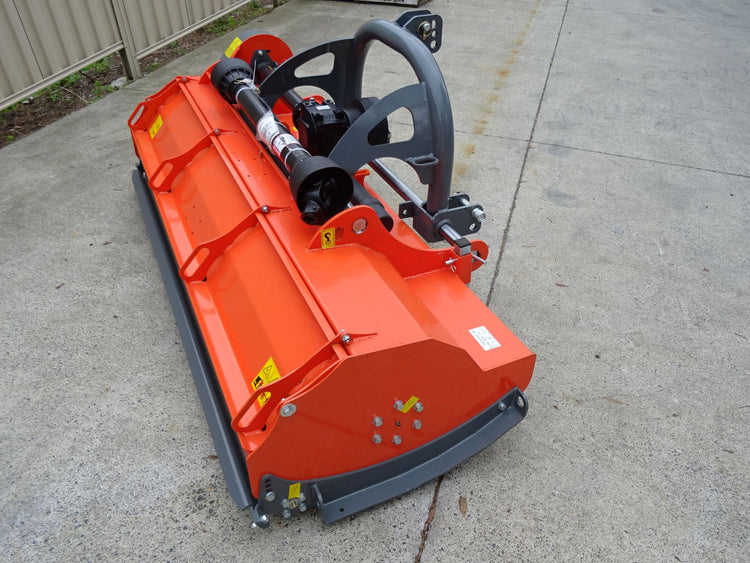

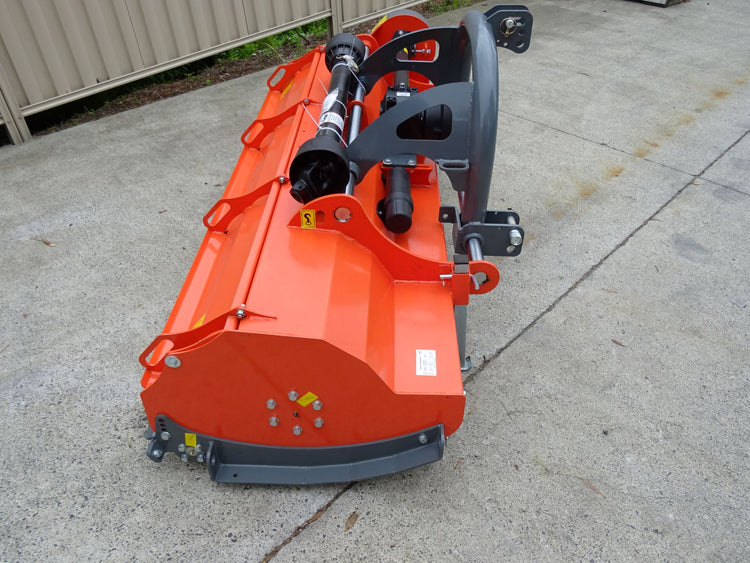

The Menasor mulcher, with a manually adjustable side shift, hammer flails and opening rear door is suitable for mowing and mulching grass, scrub and bushes or pruning in an orchard/ vineyard setting. This machine is suitable for heavier landscape conditions and performs well on tractors 45-90 HP with its 4-belt drive system.
Features & Benefits
- Manually adjustable offset
- 24 forged and hardened hammer flails, with aerodynamic pointed centre shank to help prevent grass build-up
- Rear opening door for easy maintenance and to discharge high volumes of material in heavy conditions. (hydraulic opening option)
- Category 1-2 3-point linkage pins with fixed top or floating top link pin position and fixed lower hitch points
- Suits 45-90HP

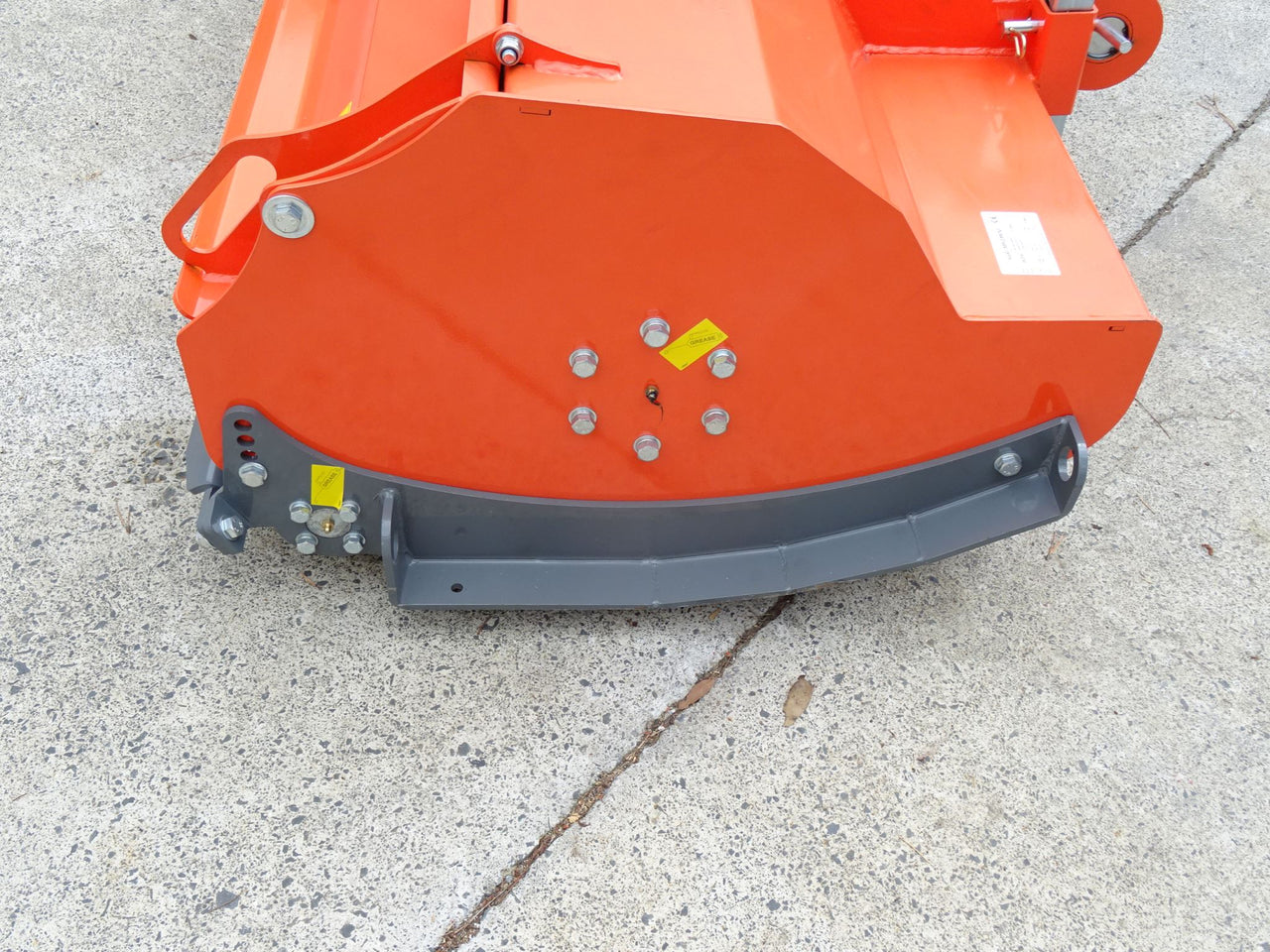

- Adjustable skids with rear roller and mud scraper
- Chain debris curtain at the front 8mm
- Lip seal in front of bearings on rotor and roller offering great protection.

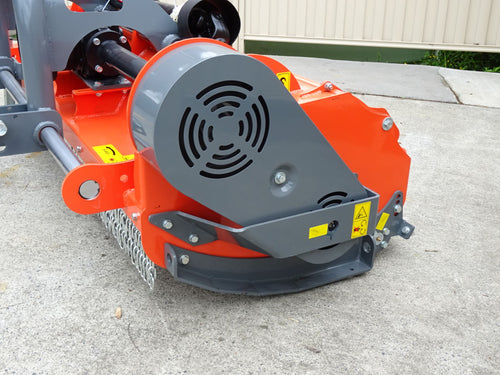

- Collision guard for belt cover
- Large diameter rear roller
- Adjustable skids/ roller in one easy adjustment
- -Optional hydraulic rear opening door
- -Optional hydraulic side shift with hoses
Specifications
| Specifications |
Units |
|
Overall Width |
2000mm |
| Cutting Width | 1750mm |
| Depth | 1020mm |
|
Overall Height |
890mm |
| Weight | 505kg |
| Offset dimensions | 980mm left of centre: 1260mm right of centre fully in each direction |
| Linkage 3 pt linkage | Category 1-2 |
| Number of hammers | 24 |
| Tractor power range | 45-90 HP |
| RPM | 2125 |
| Rotor Diameter | 168 x8mm |
| Tip speed | m/S 39 |
| Number of Belts | 4 (B section V Belts) |
| PTO | Series 5 |
|
Steel thickness |
Rear door 5mm |
| Mower body thickness | 5mm |
| Side thickness | 8mm |
| Hitch Plate thickness | 10-12 mm |
Notes
Made by Mateng in China,
24-month warranty
