Sierra Rotary Hoe 56" 1.4m for Compact Tractors

Sierra

$3,395.00 NZD inc GST

$2,952.20 NZD exc GST

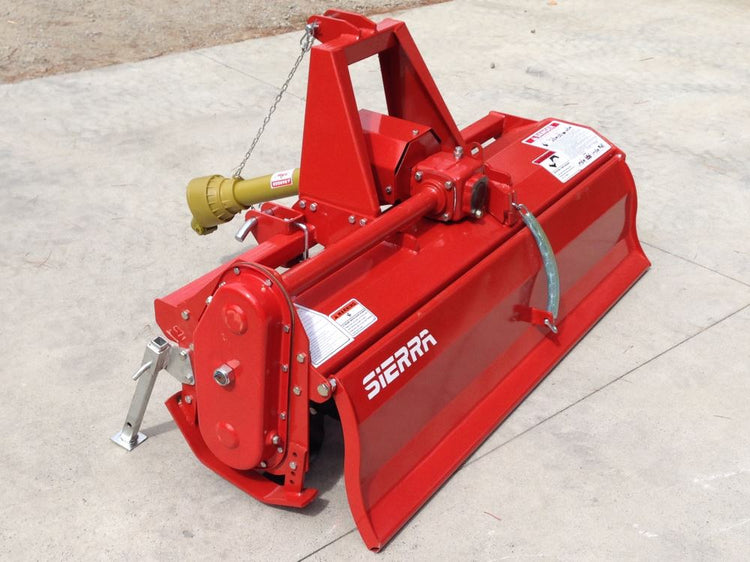

Sierra  STX56 Rotary Hoe. 56" (1.4m) working width

This Rotary Hoe is small, lightweight and perfectly designed for the working widths of Compact Tractors of 22-35HP.  It has the added benefit of the standard gear drive system found on heavy-duty tillers. Available in working widths of 40',48', and 56". It comes standard with 6 blades per flange and slip clutch PTO protection you can do more tiling in fewer passes with your tractor.

Overview:

Sierra STX Rotary tillers are well suited for lifestyle block/hobby farmers, fruit and vegetable growers, landscapers, nurseries, vineyards, and grounds maintenance operations. Applications include soil conditioning, weed control, fertiliser incorporation, and seedbed preparation.

Features & Benefits

  • It is fitted with a full-gear drive system (no chains)
  • Standard series 4 PTO shaft with slip clutch (to protect your tractor drive line)
  •  6tines per flange (instead of 4 like the competitors) made of hardened steel for quality and durability
  • Every STX also features a heavy-duty stamped A-frame three-point hitch with double lower clevis hitch points (instead of bolt-on hitch pins for maximum strength)
  • The STX series features a gear drive rotor system. The gears run in a fully enclosed oil bath for constant lubrication and long service life.
  • Adjustable lower hitch points along the square tube frame so it can be offset from the centre of your tractor
  • Parking stand for easy hookup.
  • Adjustable skids for changing tilling depth settings (1-4" of adjustment)
  • Heavy-duty curved drag board
  • Powder coat finish
  • Tilling depth. 6.5"

 Specifications

Specifications

 Units

Overall Width

 1600mm
Working Width 1420mm (56")
 Working Depth 165mm (6.5")

 Height

 650mm
Weight 204kg
Blades 36 pcs
Blade construction 6 tines per flange
Tractor 22-35 Hp Compact  Tractors
PTO  Series 4 with slip clutch



Notes

Shipped lubed, requires the assembly of  the 3-point linkage

If Free shipping is noted it is to Mainfreight depots or main centre addresses Rural delivery addresses may incur extra shipping charges.
