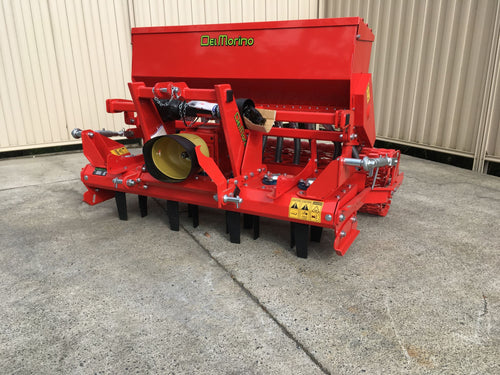

Delmorino Rotex 150 Rotary Harrow with Roller and Seeder

OVERVIEW

This is a Professional Power Harrow with 1500mm working width from Del Morino Italy, who have been producing top quality Agricultural Implements since 1852. This Harrow features high quality design and materials. Its durability and steel thickness is superior to comparable models.

 FEATURES AND BENEFITS

- Cast iron gearbox 540 rpm.

- Two blades per rotor (gear driven in an oil bath)

- Self-adjusting side protection screen, for levelling blade

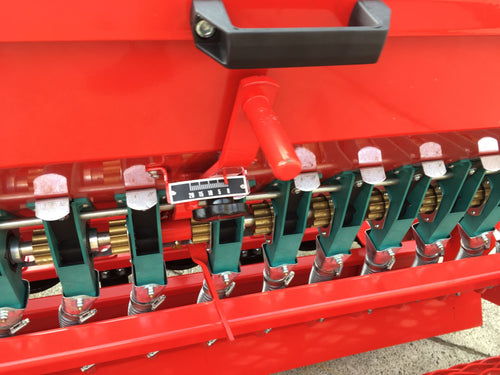

- Professional series seeder

-Professional levelling bar included

-Category 1 and 2, 3 point linkage at rear

-The Rotary Harrow is operated by the PTO of your tractor with 540 rpm.

-Robust cast iron gearbox where individual rotary knives are driven ( by 370 RPM) via sprockets in the oil bath

-The rotary knife bearings are individually lubricated (grease nipple easily accessible on top of the housing).

-Each gyro has 2 easily replaceable blades installed. Knives are specially hardened and ground 8mm thick (see photo)

-Working depth of knives up to max 190 mm.

-Side shields to avoid dam formation.

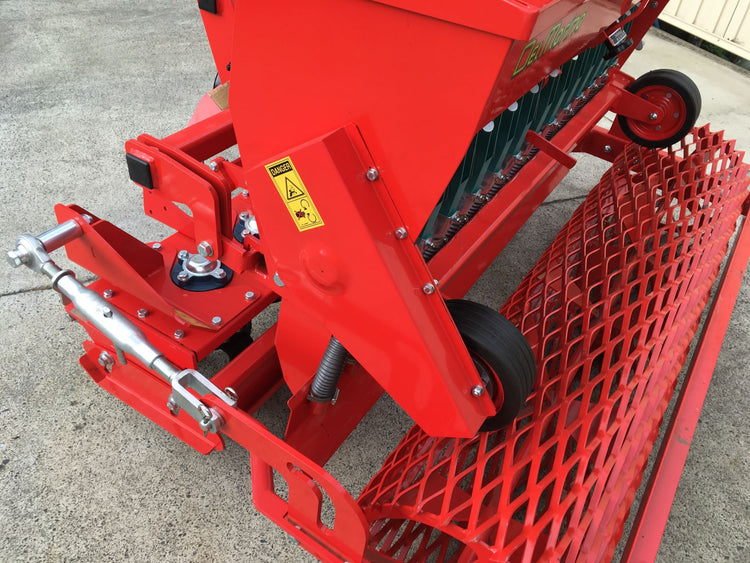

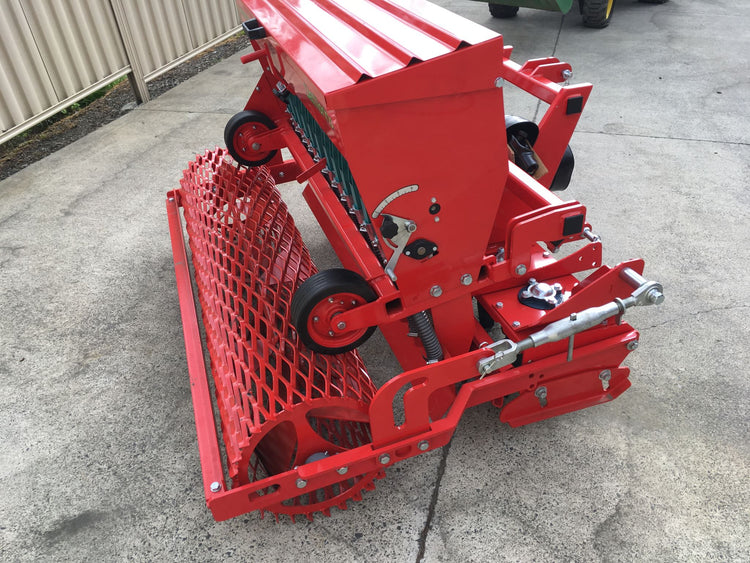

-Screen roller for optimum ground leveling and depth guidance of the rotary harrow.

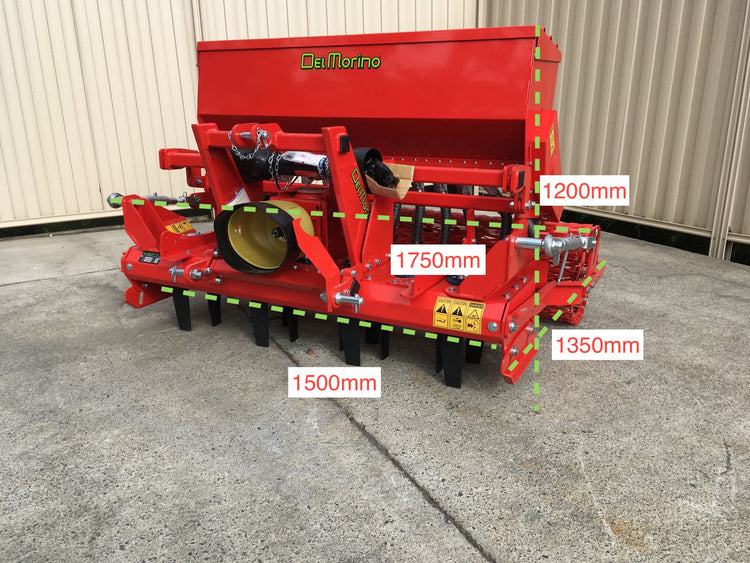

Specifications	Units
Overall width	1750mm
Working width	!500mm
Depth	1350mm
Height	1200mm
Weight	263kg
Tractor	15-45HP
Linkage	Category 1 and 2, 3 point linkage
PTO	series 4 (540 RPM)
Knives	2 blades per rotor, (8mm thick)
Working depth	190mm
Gearbox	540 RPM

 100% manufactured in Italy.
