S14 Excavator / miniskidsteer Stump grinder 37-57 LPM

Baumalight

$6,495.00 NZD inc GST

$5,647.83 NZD exc GST

Baumalight S14 Stump grinder 10-15 GPM 37-57 LPM with  Green Teeth

OVERVIEW

The S14 Grinder is designed with simple operation in mind, with no required electrical connection. The direct flow hydraulic drive is designed to provide the best torque and RPM to the cutting head as no flow is diverted to a swing cylinder.

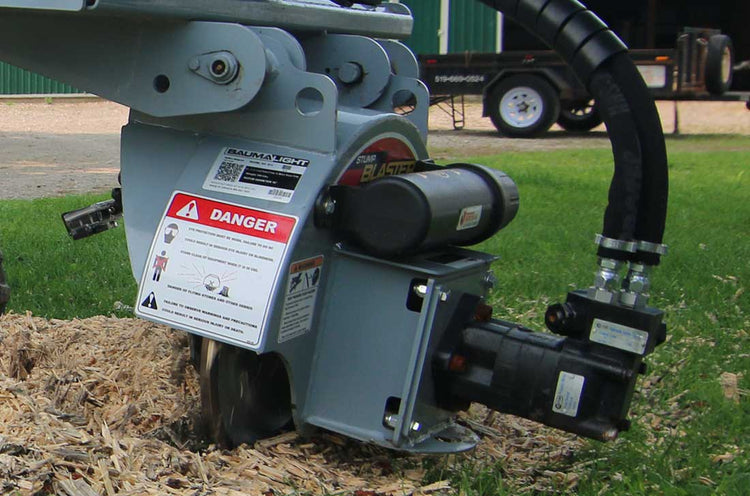

The S14 mini tool carrier stump grinder features green carbide teeth which can be rotated three times, letting you grind stumps longer and faster  with a low flow requirement. The unique positioning of the rotor allows the operator an excellent view of the grinding action and the heavy duty fixed deflector safely directs the flow of debris. Cutting depth is up to 10" below ground. The S14’s size and the available mini Excavator mount makes it a great stump grinder for better access to tight areas.

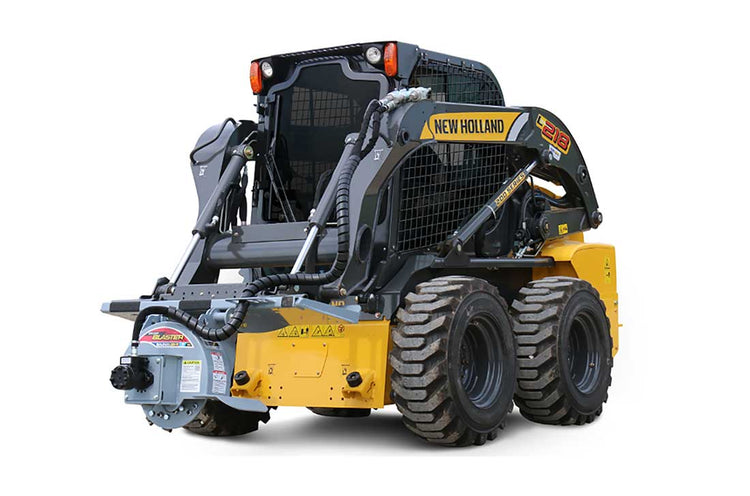

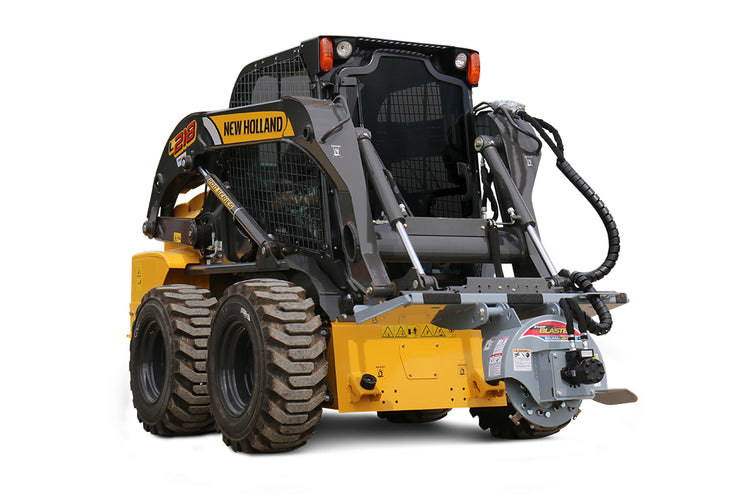

By a quick pull of two pins mountings can be swapped from  Mini Skidsteer  or skidsteer to  Excavator mounting plate (mounts not included in price)

  Mounting Options

We have availble mounts for mounting this unit on  mini skidsteer, or Excavator  please email us with your requirement.



FEATURES AND BENEFITS

-Wearsharp teeth The unique design of the Wearsharp® allows the tooth to retain a sharp cutting surface, unlike traditional teeth that tend to round over. This provides a consistent cut throughout the life of the tooth, allowing you to maintain a faster sweep speed. This round tooth is 3 teeth in 1. Simply loosen the lock nut and rotate the tooth to a fresh, sharp cutting edge. This can be done three times, extending the life of each tooth.

-6 Free teeth.  All S14 Stump Grinder comes with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in the owner’s manual tub bolted to the frame.

-More Teeth. The high number of teeth means that each tooth needs to do less work. Each of the Stump Blasters teeth only need to make a small cut, because the work is shared by more of our rugged teeth they last longer and usually only require 2 or 3 replacements at a time. The bolt-on designed teeth allow for straightforward replacement.

-More Clearance. The Stump Blaster’s carbide teeth extend a full 1-¼ inches from the rotor. This prevents chips and mulch from getting plugged. More chip clearing produces smoother operation and reduces heat build-up that can damage the rotor and cause premature tooth failure.

-Rotor. The massive ¾" thick steel rotor provides the back bone for the Stump Blaster cutting system. It’s the anchor for the carbide tipped teeth. For smooth operation it’s important that the rotor remains solid, with no flexing. The rugged rotor also provides the Stump Blaster with the extra momentum needed when the grinding is tough, making sure the Stump Blaster can power through the hardest stumps.

-Greasable pins.Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.

Specifications Units
Recommended  Hydraulic Flow  S250 Motor  10-15 GPM or 35-57 LPM
Recomended carrier size  1-3 ton
Maximum PSI 2500-3000 PSI
Motor S250  Gerotor Roller Vane Motor
RPM at max flow  910 RPM
Rotor 18" 457mm
Teeth 12
Tooth type  Green carbide teeth(H3000)
Cutting Wheel speed Depends on Gpm
Cutting height No limit
Cuttuing depth 6" below ground 152mm
Max cutting depth per pass 2" 50,8mm
Max Horizontal cut  12 " 305mm
Unit Weight 180 KG
